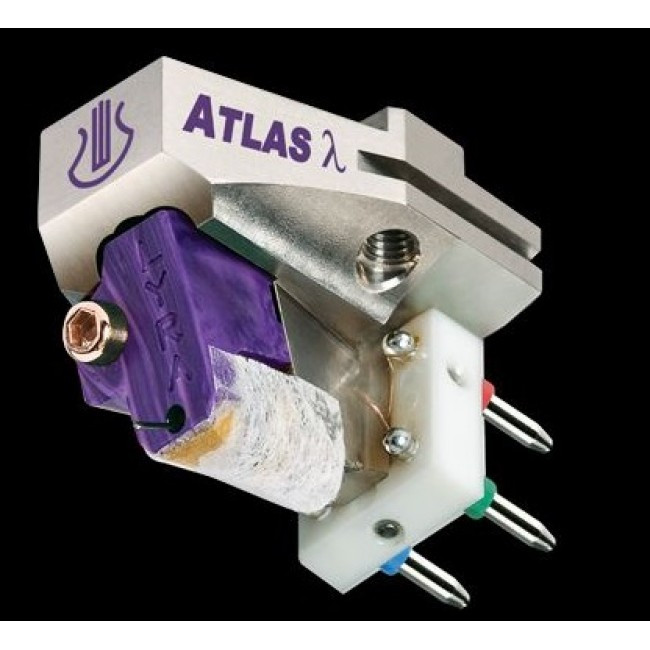

LYRA Atlas L SL Mono

706 500 ₴

  • В наявності
  • Код: Atlas L SL Mono
LYRA Atlas L SL Mono
LYRA Atlas L SL MonoВ наявності
706 500 ₴
+380 (97) 662-53-50
  • +380 (44) 233-93-88
  • +380 (63) 233-93-88
  • +380 (97) 148-95-18
  • +380 (99) 421-47-86
+380 (97) 662-53-50
  • +380 (44) 233-93-88
  • +380 (63) 233-93-88
  • +380 (97) 148-95-18
  • +380 (99) 421-47-86
повернення товару протягом 14 днів за домовленістю
Specifications for Lyra Atlas Lambda Designer: Jonathan Carr Builder: Yoshinori Mishima Type: Medium weight, medium compliance, low-impedance moving coil cartridge Stylus: Lyra-designed long-footprint variable-radius line-contact nude diamond (block dimensions 0.08w x 0.12d x 0.5h mm, profile dimensions 3um x 70um), slot-mounted Cantilever system: Diamond-coated solid boron rod with short one-point wire suspension, directly mounted into cartridge body via high-pressure knife-edge system Body: Machined asymmetrical titanium with synthetic composite gemstone Coils: 2-layer deep, 6N high-purity copper, cross-shaped chemically-purified high-purity iron former, 4.2ohm self-impedance, 11uH inductance Output voltage: 0.56mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results) Frequency range: 10Hz ~ 50kHz Channel separation: Greater than 30dB at 1kHz Compliance: Approx. 12 x 10-6cm/dyne at 100Hz Cartridge body: One-piece machining from solid titanium billet, with reduced-surface higher-pressure headshell contact area, predominately non-parallel and asymmetrical shaping, phase-interference resonance-controlling mechanism, and body threaded directly for mounting screws Cartridge mounting screws: 2.6mm 0.45 pitch JIS standard Distance from mounting holes to stylus tip: 9.5mm Cartridge weight (without stylus cover): 11.6g Recommended tracking force: 1.62 - 1.72g Recommended load directly into MC phono input: 104ohm ~ 887ohm (detailed guidelines in instruction manual, finalize by listening) Recommended load via step-up transformer: Use a step-up transformer designed for 3 -6 ohms cartridge impedance (step-up transformer’s output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable) Recommended tonearms: Medium to Medium-High mass arms recommended, which is bulk of tonearm market
Характеристики
Основні
ВиробникLYRA
Інформація для замовлення
  • Ціна: 706 500 ₴
